Product

Bio Gas Generator

Bio Gas Generators

Engine Type : 1 MW below (Internal Combustion), 1 MW ~ 2 MW (Screw Expender), 5 MW above (Steam Turbine)

Methane Concentration : 55% ~ 65%

Operation Time : 24hr, 280 day

Estimated Construction Cost : 1 MW - USD 3,000,000

Benefit : Electric Sales, REC(Renewable Energy Certificate), CDM(Clean Development Mechanism)

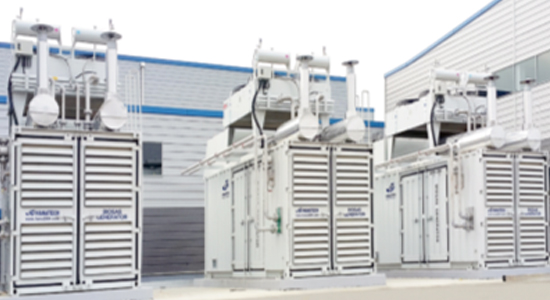

Bio gas Generator Plant in Youngchon Site, Korea

  • Business Outline
  • Capacity : Livestock Manure 150 ton/d + Food Wastes 110 ton/d

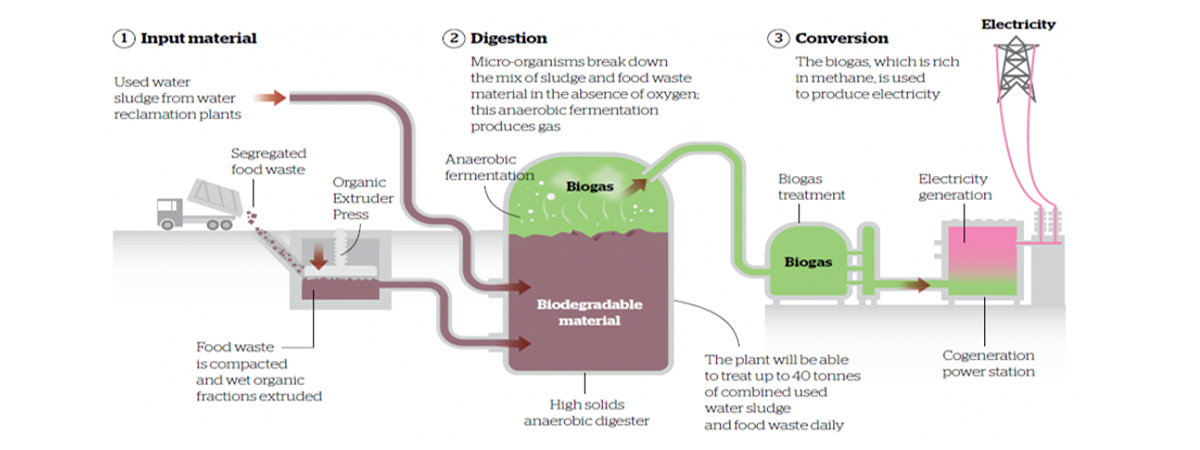

  • Process : Anaerobic fermentation → CH4 → Generation

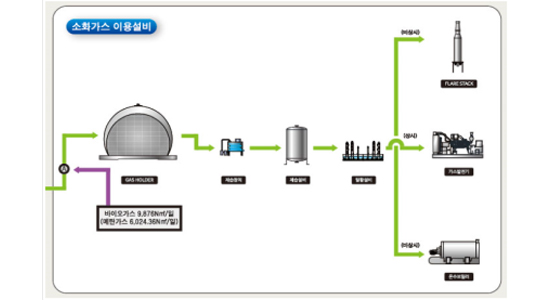

  • Main Facilities : input material → Digestion → Conversion → Electricity
  • HANTEACH Bio gas Genset 350 kW X 3 sets
  • Power Plant with Digest Gas of Livestock Manure & Food Wastes
  • The various biogas power plants in Korea utilize food wastes from households or canteens as well as organic residual wastes from livestock farms, food factories etc., for producing biogas.
  • The electricity generated by gas engine generators can be supplied for its own use of biogas plant, or can be connected into the public grid.
  • The exhaust gas & the coolant heat of engine is used for the heat source to supply the heat for biogas digesters, the dryer of the wastes, and the air-conditioners in the buildings.
